SMS Call Deflector

Redirect incoming calls via SMS to any chat based solution

PreviousSmart IVR BasicNextSurvey Basic

Last updated 5 months ago

Was this helpful?

Introduction

The SMS Call Deflector app will redirect incoming calls to a chat based channel via SMS. The app will send a text message to the caller, containing a link to either a webpage, the PWA, or new Whatsapp chat to a number of your choosing.

The PWA of this app, accepts incoming messages and will escalate to an operator via the Inbox. Only when the operator doesn't join the chat within the preconfigured time, it will ask the customer to leave its contact details. This way the customer will receive either an email or a text message once the operator joins the chat, allowing them to re-engage in their own time.

Getting Started

Channel Requirements

  • The SMS Call Deflector will redirect incoming calls to chat based channels.

  • (Optionally added channel).

When redirecting to PWA, also enable your PWA channel and/or channel

Installation Process

1

Opening hours

Make sure your are configured.

2

Phone channel

Make sure your channel is enabled.

3

Configure the SMS deflection

Set up the behavior in the content section, see below

4

Finalizing

your users and let them configure their settings, settings, and optionally , such as multi-factor authentication.

Using the SMS Call Deflector App

App Settings

SMS configuration

Here you can change the destination of the deflection. The three options are:

  • SMS to Web URL The SMS will contain a link to a webpage of your liking.

Unlike the Whatsapp integration, available for Advanced apps, any conversation with the customers via the SMS to Whatsapp route will not be handled in the Inbox.

Auto responses

After being deflected to the Inbox via an SMS, the app will use a couple of predefined messages to welcome the user. These messages can be configured via the Auto responses in the Content section.

When a customer sends a message in the Inbox, it might take a while before your team is able to respond. Setting the expectations is crucial for customer success. Therefore the system is designed to send a short auto response, directly after a customer sends a message. In this response the expectations for the response time can be set. Go to the content section and open the Auto responses page. Here you can configure what auto response should be given when a new conversation is started.

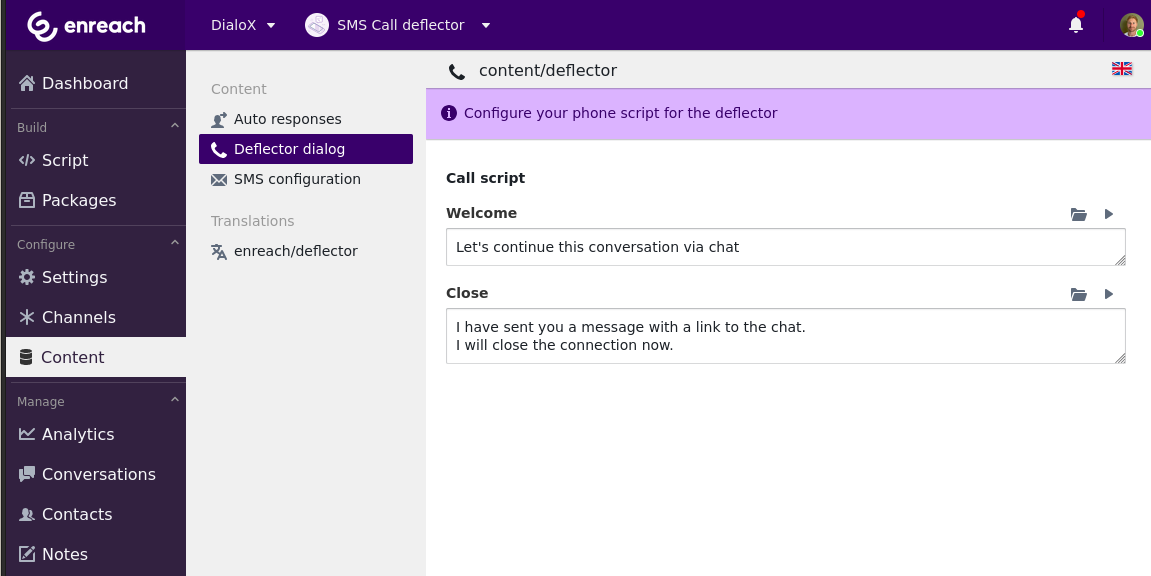

Deflector dialog

The SMS Call Deflector will start the converstion with the Welcome message from the 'Deflector dialog'. Then it will ask the customer on which phone number they can be reached via a text message. After receiving their phone number, an SMS will be sent, followed by notifying the customer with the Close message of the dialog. Go to the content section and open the 'Deflector dialog'. Here you can configure the messages sent to the customer.

Roles

Any of the following roles can be assigned to manage the CMS, and thus the conents of the SMS Call Deflector

  • Agent

  • Operator

  • Content Manager

App Workflow

The SMS Call Deflector app operates as follows:

An incoming call triggers the app, which assesses the deflection criteria. If the call meets the deflection rules, the system automatically sends an SMS message using a predefined template. The SMS message offers the caller a choice to continue the conversation via text. Agents can monitor and respond to SMS interactions using the integrated SMS dashboard. Calls that do not meet the deflection criteria are routed through standard channels as usual.

FAQ

Can I set different SMS templates for various call scenarios?

Yes, you can create multiple SMS templates in the SMS Configuration section, each tailored to specific scenarios such as missed calls or after-hours inquiries.

Languages

The app will determine the language of the user based on their phone number. The app falls back on the default language of the app in case the language cannot be determined (e.g. French or Dutch in Belgium).

Opening hours

When using the SMS Call Deflector to deflect to PWA, the office hours will let the user know if they're reaching out within or outside office hours. This helps set the expectation on how long to wait for a reply.

Resources

  • Phone

  • Inbox

SMS to PWA This will include a link to the PWA (chat interface) of this app. When the chat is opened by the customer, the app will escalate the conversation to a human operator. The conversation can then be handled from the . .

SMS to Whatsapp If your license doesn't include a , you can also deflect to any other Whatsapp number. This doesn't need to be a Whatsapp Business account.

Inbox
Learn how to enable the PWA here
Whatsapp integration
Phone
PWA
chatwidget
opening hours
phone
availability
profile
notification preferences
security settings
Invite
